Ablation Model
Ablation

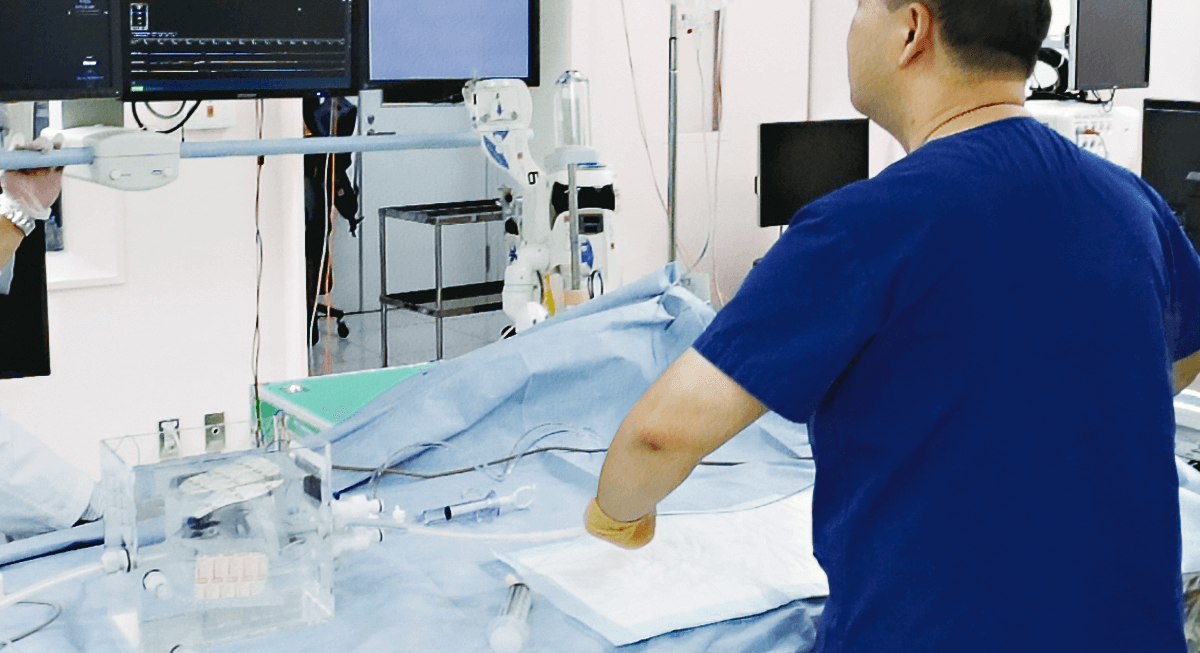

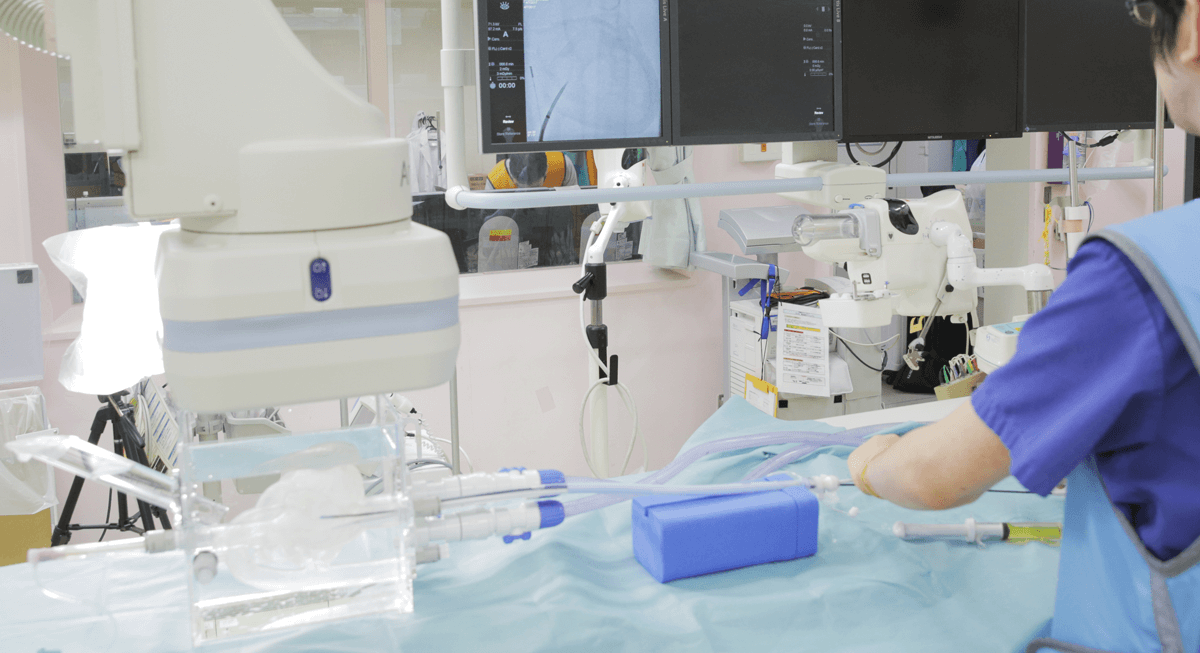

This model facilitates technical training for catheter manipulation and 3D mapping, which are basic skills required for catheter ablation. With this model, the Brockenbrough Method guided by ICE can also be simulated.
The model is appropriate for both the internal jugular and femoral vein approach.

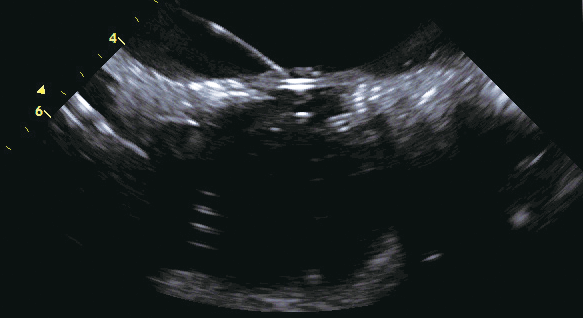

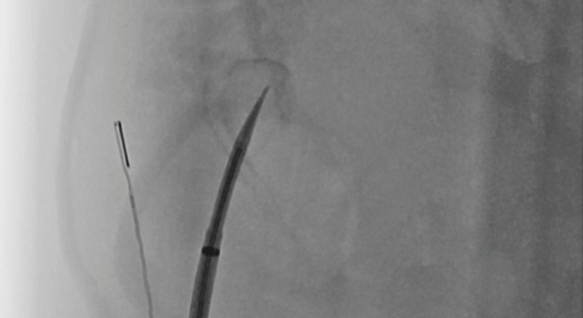

Atrial septal puncture

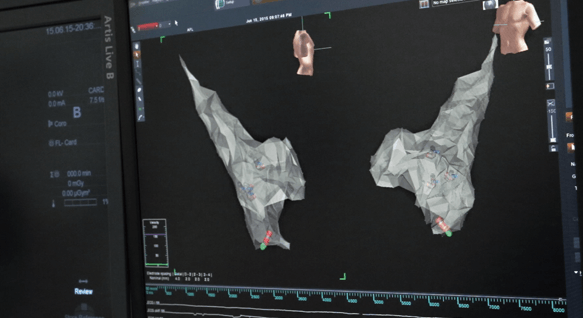

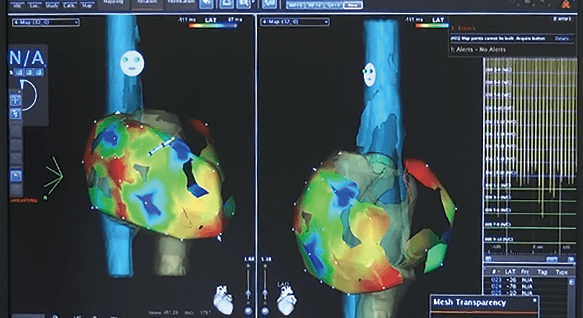

3D mapping
- Basic Set -

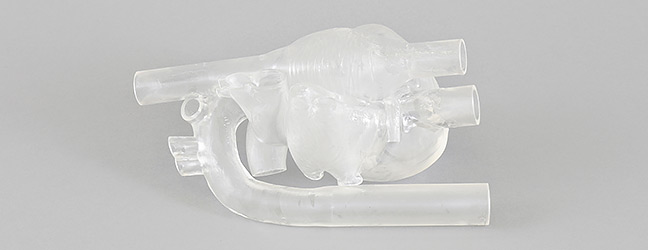

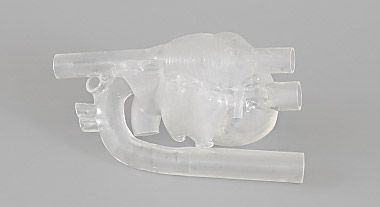

Heart model for Ablation

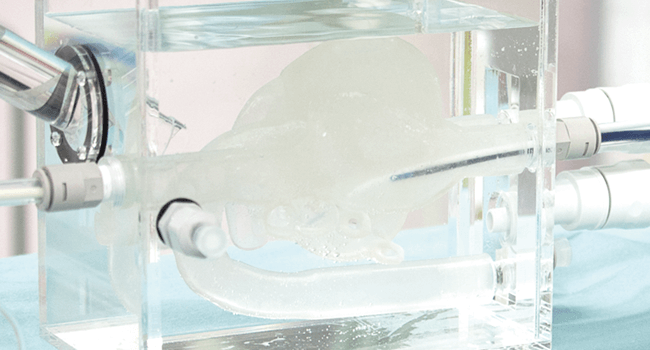

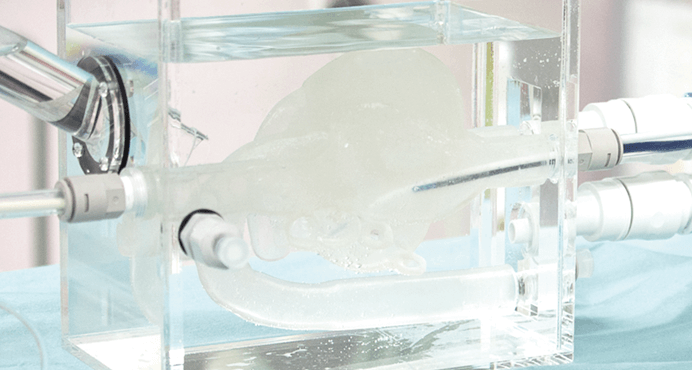

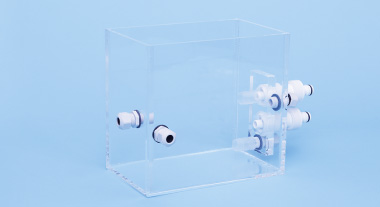

Special Smart Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
- Basic Set -
Heart model for Ablation

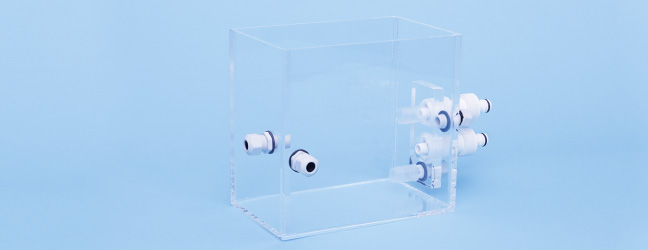

Special Smart Tank
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than six liters of water are required for training.
Pulsatile Pump
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. ( lasts for 20 coatings )
Hoses
Hose with one-touch joint.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
