CSR Model
Structure

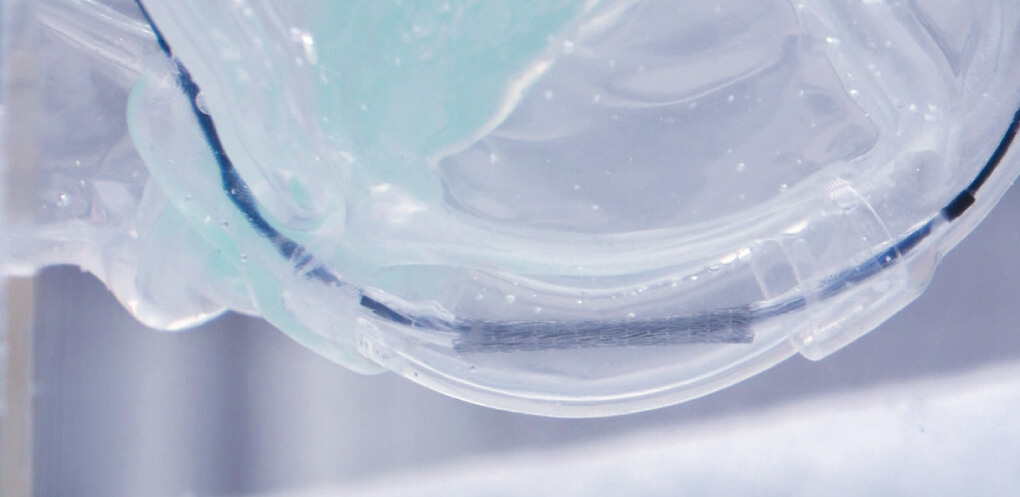

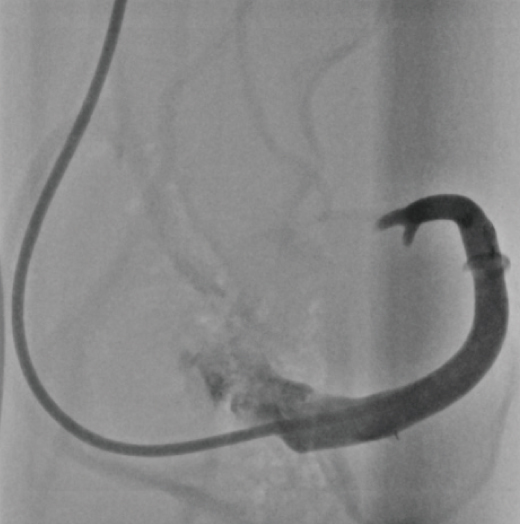

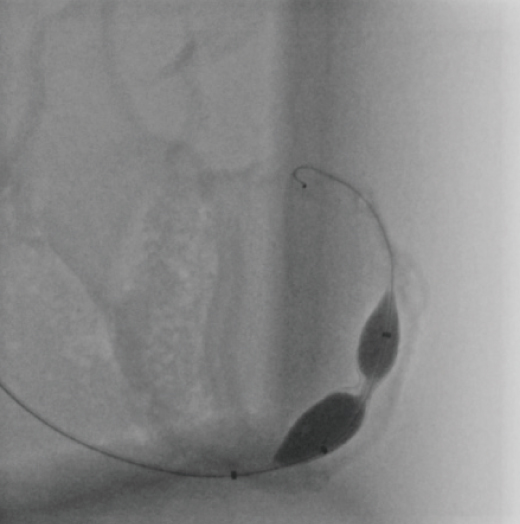

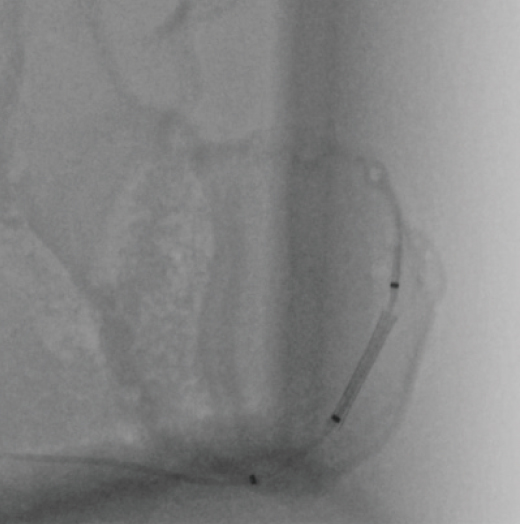

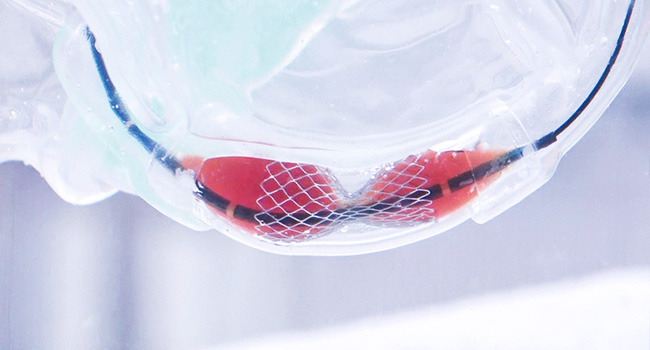

HEARTROID CSR model is designed for training in Coronary Sinus Reducer deployment under X-ray fluoroscopy and camera view.
This model can facilitate how to plan where to deploy the device and learn the entire procedure from coronary venography to safe removal of the delivery catheter through the simulation training.
Coronary sinus part is removable and can be moved on to the next procedure immediately.
- Basic Set -

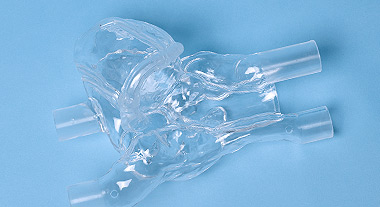

Heart Model for CSR
Heart model suitable for practical training under X-ray fluoroscopy in the cath lab.
Smart Tank for CSR
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
HEARTROID Pump Type-1
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (8Fr)
Number of tubes: 1( 8Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
- Basic Set -

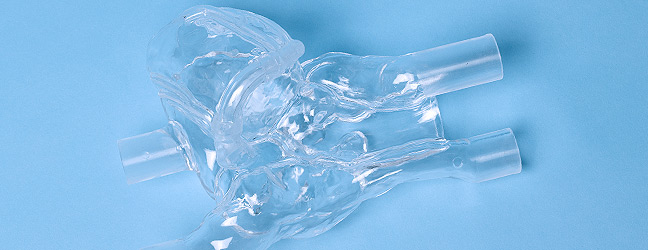

Heart Model for CSR
Heart model suitable for practical training under X-ray fluoroscopy in the cath lab.
One of the valves shown below is included.
Smart Tank for CSR
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
HEARTROID Pump Type-1
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath (8Fr)
Number of tubes: 1( 8Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
