TAVI Model
Structure
HEARTROID TAVI model facilitates technical training for TAVI (T ranscatheter Aortic Valve Implantation), a novel therapy for aortic valve stenosis.
With a pulsatile pump included in the se t, stent valve deployment under blood flow can be veri - fied by simultaneous aortography.
Cusp overlap Technique with HEARTROID
This system is appropriate for both b alloon-expand - able and self-expandable transcatheter stent valves.It is also applicable to both the TF and TA approach. It can be used under various circumstances, from hands-on seminars at an exhibition booth to simula - tion under X-ray fluoro scopy in the cath lab. The de - tachable aortic valve part enables quick preparation and effective training.
Valve implantation
-
LAO Technique
LAO View LAO17 CAU10
Cusp Overlap Techniquie
-
Native Coplanar View AP CAU10
-
Cusp Overlap View RAO25 CAU15
-
LAO View LAO17 CAU10
Recommended angles are for TAVI model 37°
Coronary Height Variety
Valve parts(detachable)
-
Aortic Stenosis Valve
A detachable aortic valve with severe calcification.
-
Bicuspid Aortic Valve
Cusp Overlap View RAO25 CAU15
-
Aortic Regurgitation Valve
A detachable aortic valve without calcification.
Aortic Valve variety
-
Aortic Annulus19mm
Heart bodyType2
-
Aortic Annulus22mm
Heart bodyType1
-
Aortic Annulus25mm
Heart bodyType1
Φ19 mm module is compatible only with the type 2 design of the heart body module
TAVI Model Setup Procedure Video
This video provides step-by-step instructions for setting up the TAVI Model. HEARTROID is ready for training in just a few minutes.
- Basic Set -

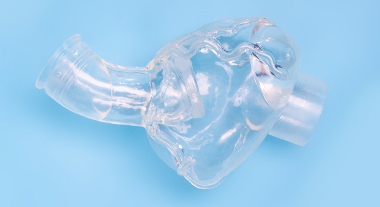

Heart Model for TAVI
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.

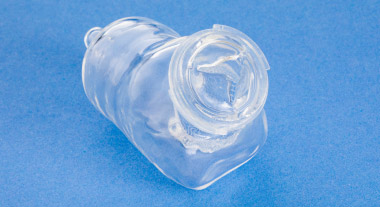

Valve part
One of the valves shown below is included.
Aorta parts
The aorta is expressed by a hard material. When delivered, it will be delivered pre-attached to the tank.

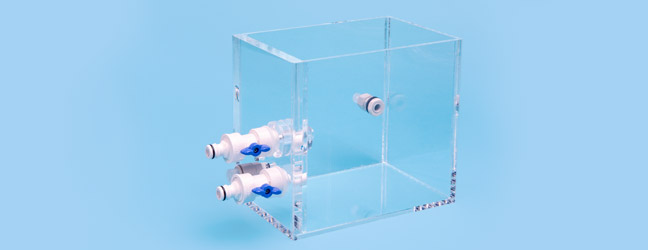

Special Tank for TAVI
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
Pulsatile Pump for TAVI
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath
A tube with sheath for radial approach is contained in the set.Femoral sheath for TAVI catheter is not included.6Fr
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
- Basic Set -
Heart Model for TAVI
Heart model suitable for practical training in TAVI under X-ray fluoroscopy in the cath lab.
One of the valves shown below is included.
Valve part
One of the valves shown below is included.
Aorta parts
The aorta is expressed by a hard material. When delivered, it will be delivered pre-attached to the tank.

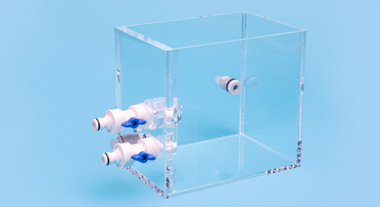

Special Tank for TAVI
Transparent tank that provides high visibility for catheter use simulation with or without X-ray fluoroscopy. No more than 6 liters of water are required for training.
Pulsatile Pump for TAVI
Our uniquely-developed pulsatile pump can be set by 30-120 bpm (1600-4000ml/min in flow volume.). Realistic coronary images are obtained by particular patterns of the cylinder movement. The pump and tank are connected with easy-to-prepare connectors to avoid water leaks and time losses.
Tube with Sheath
A tube with sheath for radial approach is contained in the set.Femoral sheath for TAVI catheter is not included.
6Fr
Tube with Sheath (24Fr)
Number of tubes: 1( 24Fr )
Lubricant
Special lubricant for coating the inner surface of the heart model.
1 fl. oz. (lasts for 20 coatings)
Hoses
Hose with one-touch joint.
Product specifications can be customized and are subject to change without notice.
Please contact JMC for details.
